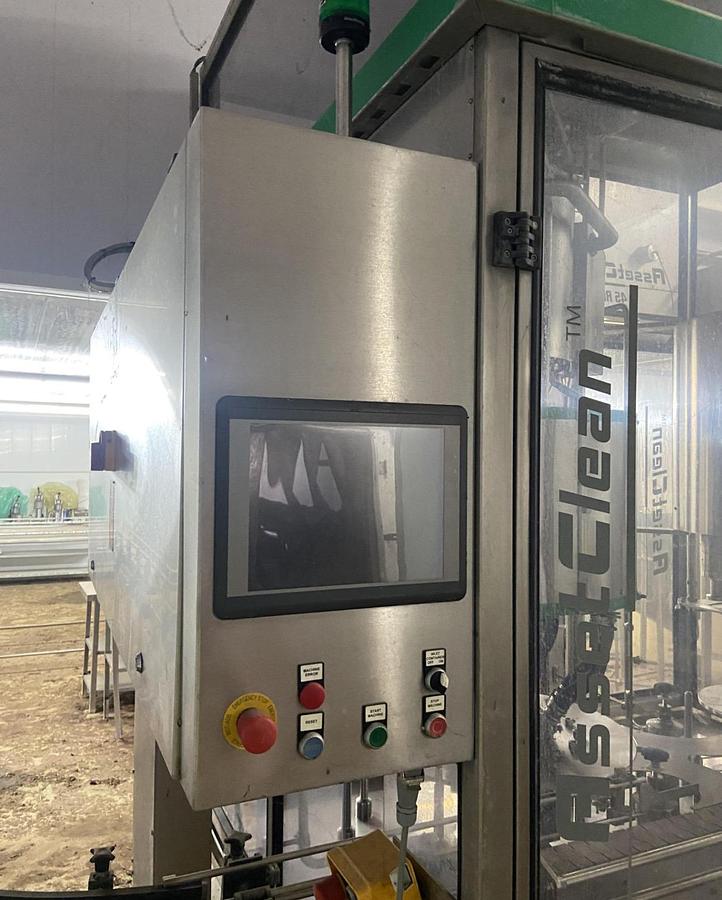

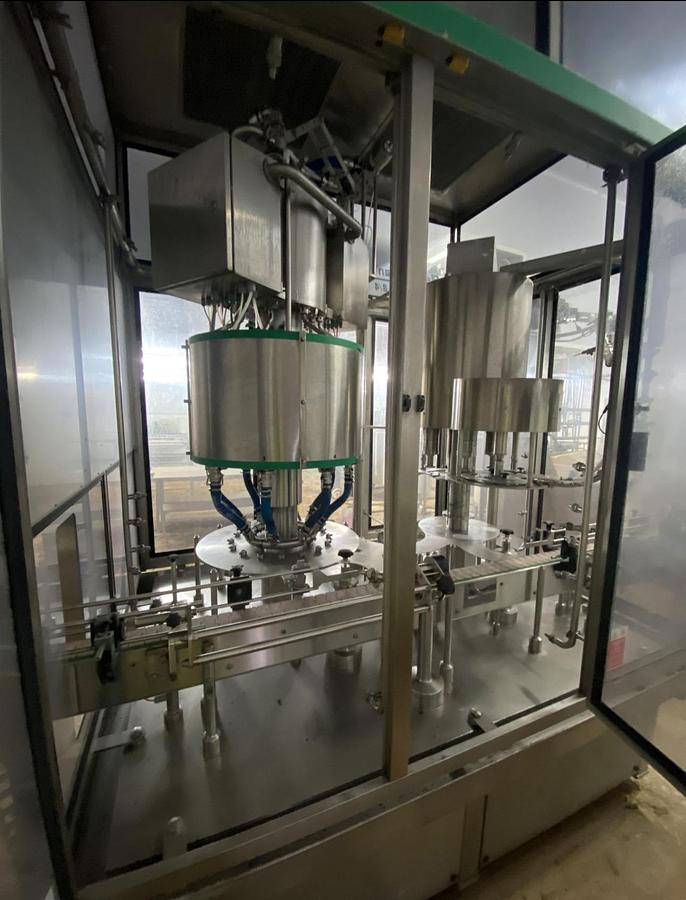

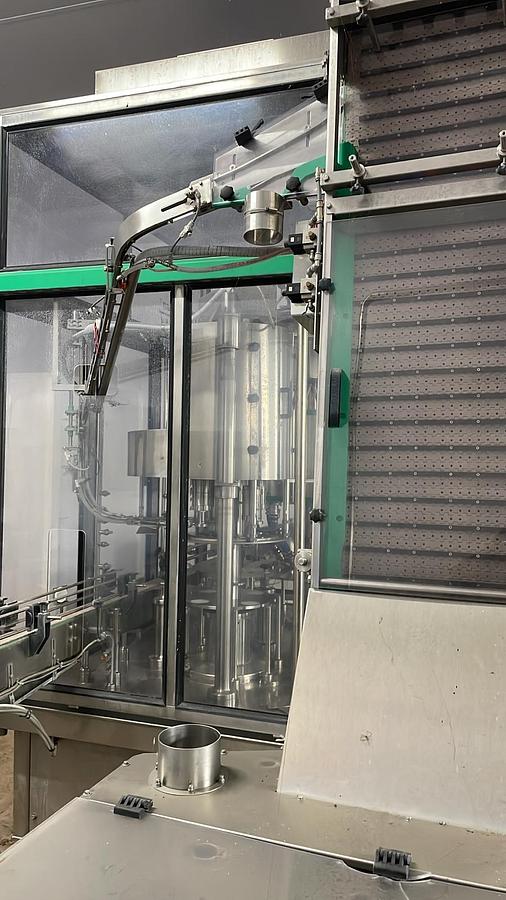

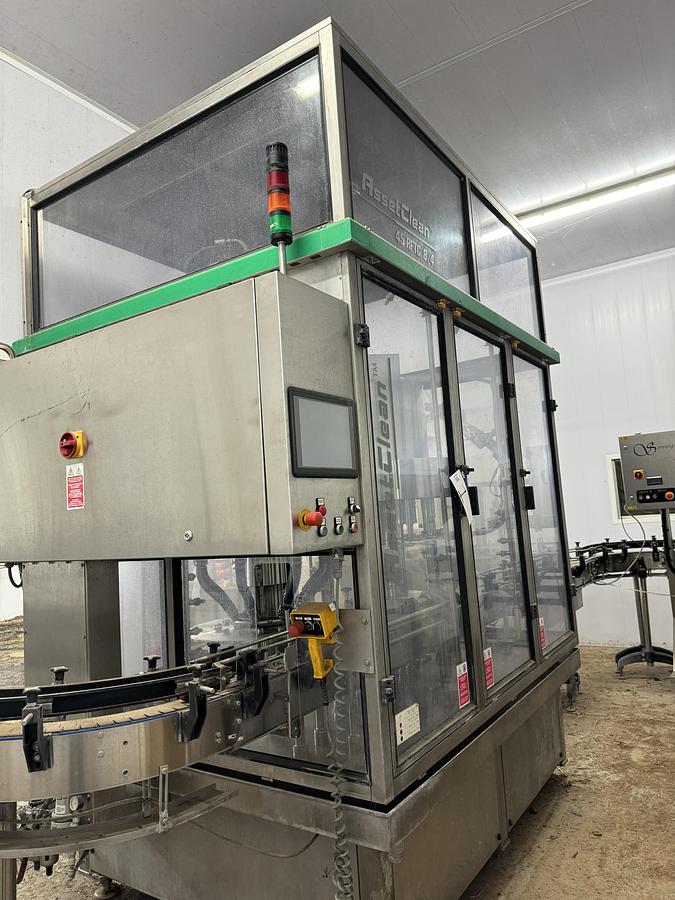

Rotary Filling line 9/3 with Integrated Capper

General Description

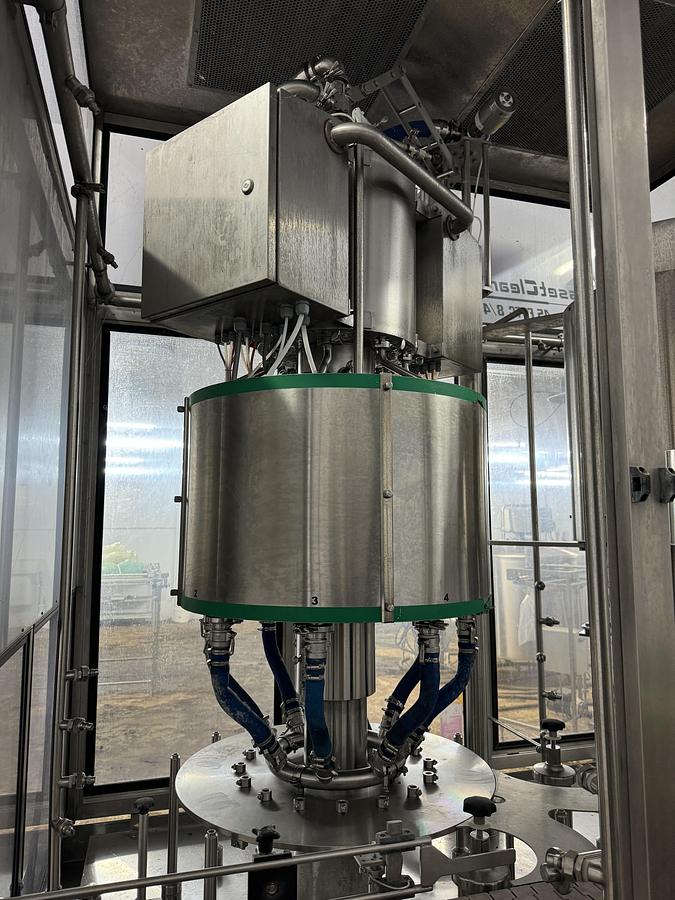

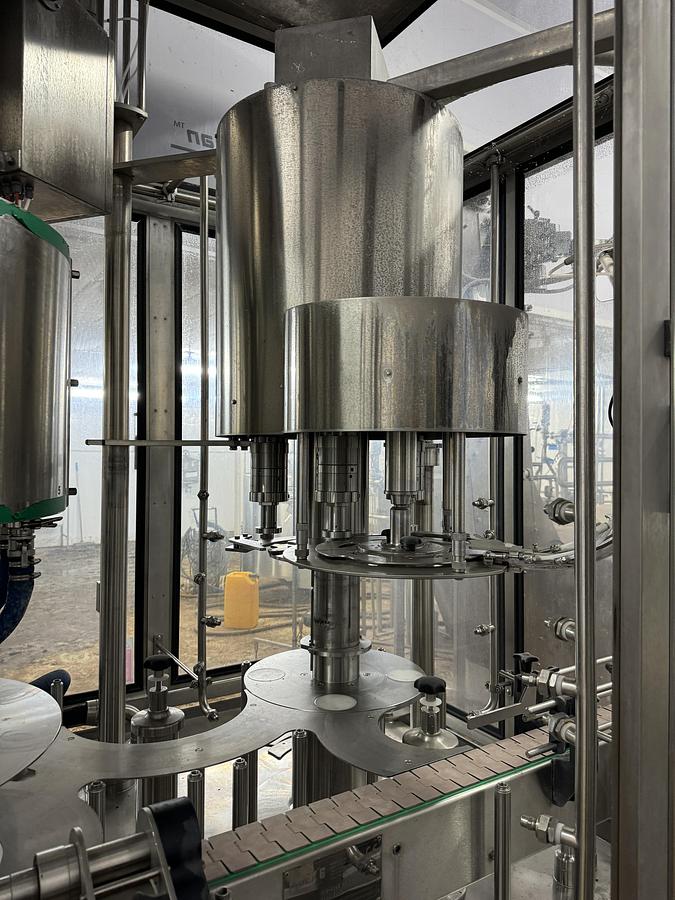

Automatic rotary filling and capping machine designed for hygienic filling of fresh milk into HDPE bottles. The machine is equipped with gravity filling valves for accurate dosing and a pick-and-place capping system with magnetic clutch heads to ensure consistent and controlled cap application.

Previously Filling 500ML, 1000ML AND 2000ML WITH 38MM CAPS.

Change Parts Available.

Technical Specifications

Model: HBP LF 9/3

Number of filling valves: 9

Number of capping heads: 3

Nominal output:

Up to 3,000 bottles/hour (2000 ml)

Up to 4,500 bottles/hour (500 ml)

Dosing system: Gravity filling

Fill range: 200 – 2000 ml

Bottle material: HDPE

Power supply: 400 V

Installed power: 3.5 kW

Operating air pressure: 0.5 – 0.6 MPa

Compressed air consumption: 70 L/min

Operators required: 1

Machine dimensions: 2400 × 1400 × 2600 mm

Weight: Approx. 950 kg
